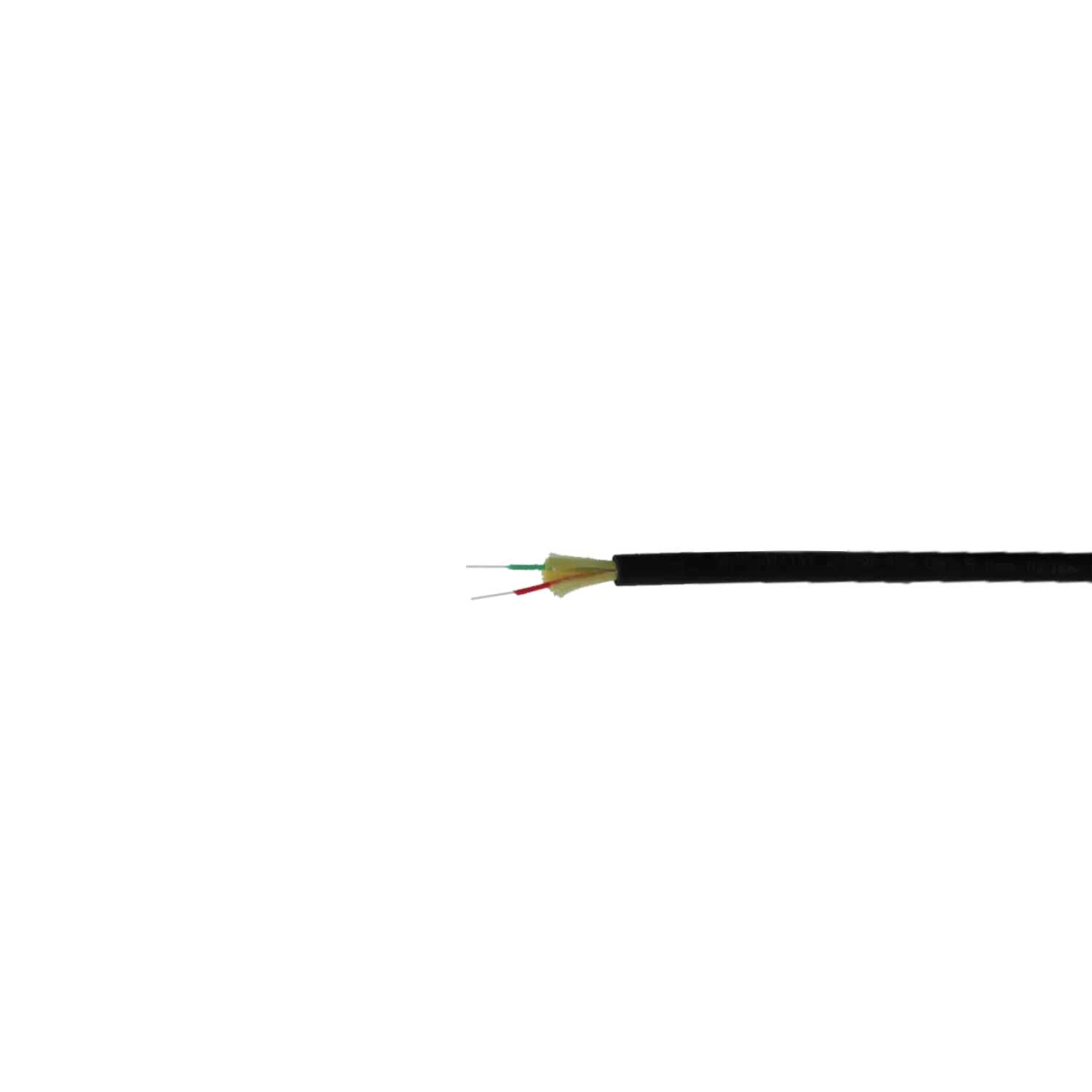

U-DQ(ZN)H 8G50/125 OM3 Black LSZH 7.0mm, 800N
U-DQ(ZN)H 8G50/125 OM3 Black LSZH 7.0mm, 800N
U-DQ(ZN)H 8G 50/125 OM3 Black LSZH 7.0mm, 800N
Application | |
This cable is suitable for fixed installation in cable ducts and tubes,non-metallic armouring. Cable for flexible applications indoor and outdoor,rodent resistance. | |
| |
Standard | |
IEC 60793-2-10 Cat. A1a.2 | multi-mode fiber |
IEC 60794-2 | In-door cable |
IEC 60794-1-2 | Cable type test |
Structure | |
Fiber | |
Core diameter | 62.5 ± 3 um |
Cladding diameter | 125 ± 2 um |
Coating diameter | 245 ± 10 um |
Color | Blue |
Tight buffer | |
Material | LSZH |
Outer diameter | 0.9 ± 0.05 mm |
Buffer color | Blue |
Reinforce element | |
Kevlar | |
Jacket | |
Material | LSZH |
Wall thickness | 0.4 ± 0.1 mm |
Outer diameter | 2.0 ± 0.1*4.0 ± 0.1 mm |
Color | Orange |
Printing | I-V(ZN)H 2xG62.5/125 |
| OM1 xxxxM WWNYY |
Optics Performance | |
Attenuation | < 1.2 dB/km @1300nm |
| < 3.2 dB/km @850nm |
Bandwidth | > 500 MHz·km @1300nm |
| > 200 MHz·km @850nm |
NA | 0.275 ± 0.015 |
| |
Mechanical Parameter | |
Tensile strength | > 60N Long term |
| > 30N Short term |
Bending radius | > 30mm Long term |
| > 15mm Short term |
Crush | >500 N/dm |
| |
Climate Properties | |
Storage and transportation | -20℃ to + 60℃ |
During installation | -10℃ to + 50℃ |
Operation | -20℃ to + 60℃ |
| |
Flame Characteristic | |
Single cable vertical flammability | GB/T 18380.12-2022 |
Smoke density > 60% | GB/T 17651.2-2021 |
Absence of halogen <= 5 mg/g | GB/T 17650.1-2021 |
