H-PCF Industrial Fiber Optic Cable Construction — OEM Cable Assembly
H-PCF Industrial Fiber Optic Cable Construction. OEM-sourced fiber optic cable assembly with POF or glass fiber, custom lengths. Request a quote for your project.
H-PCF Industrial Fiber Optic Cable Construction — OEM Cable Assembly
H-PCF cable, PCF 200 230um fiber, hard clad silica fiber cable, fiber optic component, OEM optical cable supplier
PRODUCT OVERVIEW

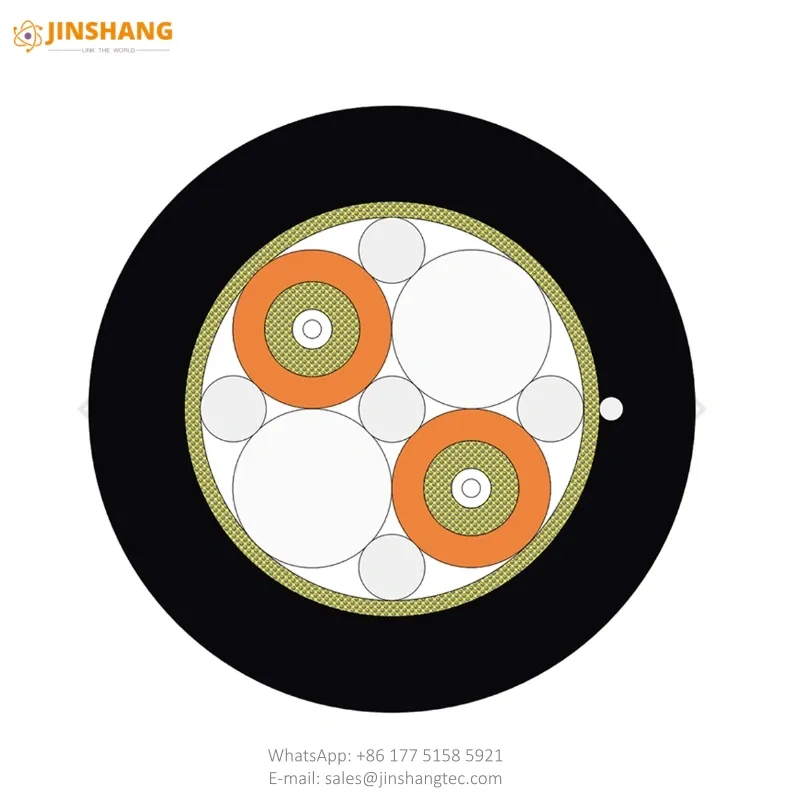

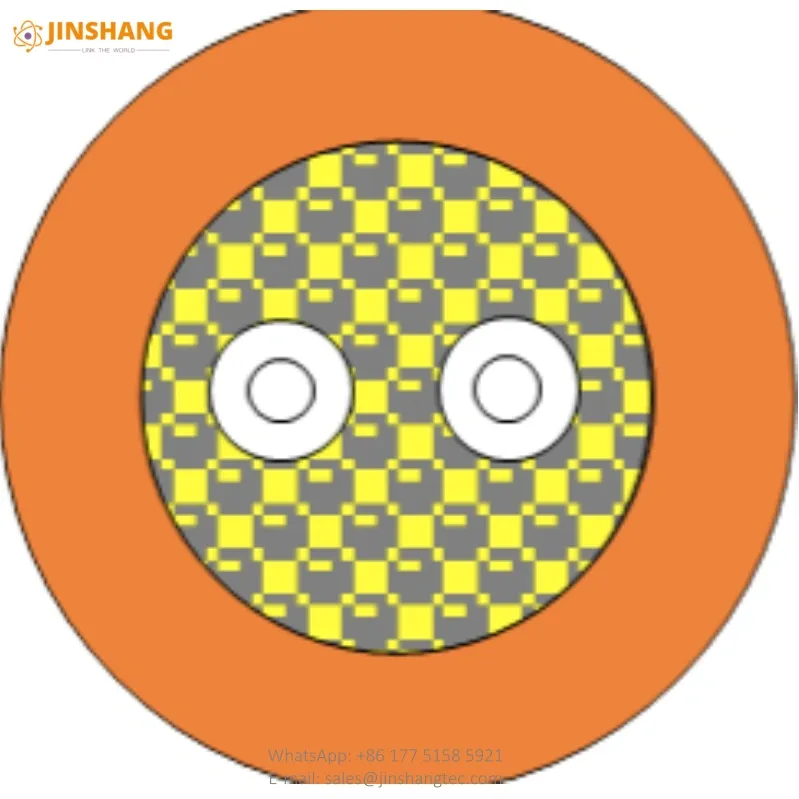

The H-PCF Industrial Fiber Optic Cable Construction is a cable-construction option for specifying custom fiber cable construction, balancing protection with routing flexibility, and building terminated OEM optical assemblies. It uses hard-plastic-clad silica fiber cable and is illustrated as PCF/H-PCF cable cross-section concepts with buffer, reinforcement, and jacket, giving OEM engineers a basis for defining protection, flexibility, diameter, and termination requirements.
Images of the H-PCF Industrial Fiber Optic Cable Construction may show connector, jacket, color, ferrule, or protection variants. Treat these as configuration references rather than proof that every option is included in one part number.
TYPICAL USES
- specifying custom fiber cable construction
- balancing protection with routing flexibility
- building terminated OEM optical assemblies
PERFORMANCE
Performance of the H-PCF Industrial Fiber Optic Cable Construction is set by fiber grade, buffer system, strength members, jacket material, armor or reinforcement, finished diameter, bend limits, and the installation environment. The image explains the construction concept but does not establish a universal dimensional or environmental rating.
When specifying the H-PCF Industrial Fiber Optic Cable Construction and its hard-plastic-clad silica fiber cable, state fiber count and type, outer diameter, jacket compound, flexibility, flame requirement, tensile requirement, temperature range, connec
KEY FEATURES
- PCF/H-PCF cable cross-section concepts with buffer, reinforcement, and jacket cable construction concept
- Fiber, buffer, reinforcement, and jacket can be specified for the project
- Mechanical protection can be balanced against flexibility and finished diameter
- Suitable as a basis for custom terminated cable assemblies
- Final ratings remain configuration-dependent
APPLICATION SCENARIOS
- Equipment maintenance - industrial cable routing
- OEM integration - sensor and laboratory optical links
- System retrofit - equipment-specific harness development
SUMMARY
The H-PCF Industrial Fiber Optic Cable Construction is best specified by connector format, fiber construction, cable or component configuration, length or mounting requirement, and the target equipment. It can support industrial cable routing, sensor and laboratory optical links, and equipment-specific harness development when the selected version is matched to the complete optical link. Final fiber type, cable length, jacket, termination, and environmental requirements should be confirmed again
