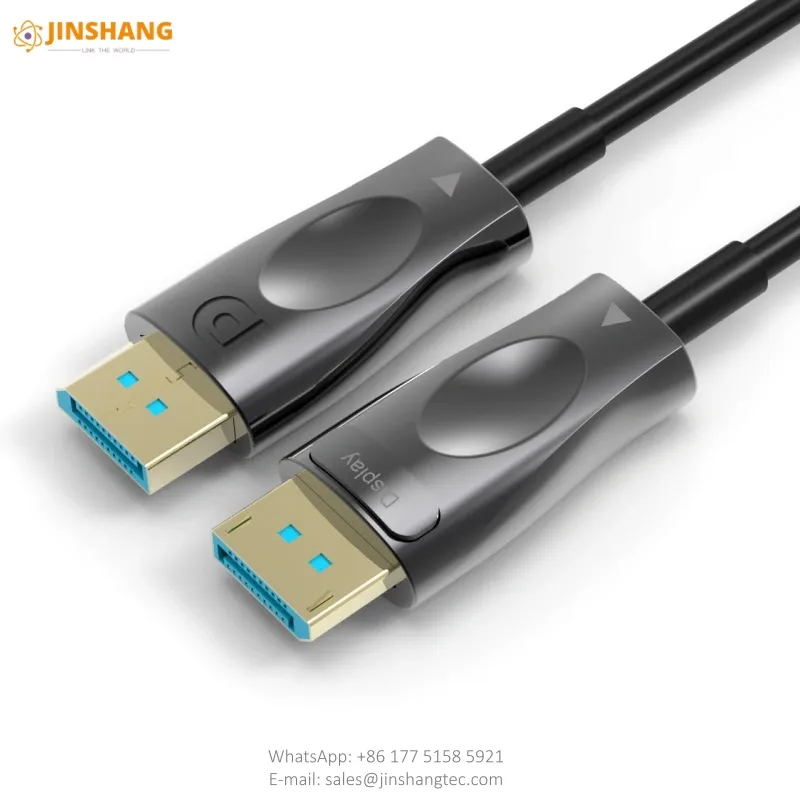

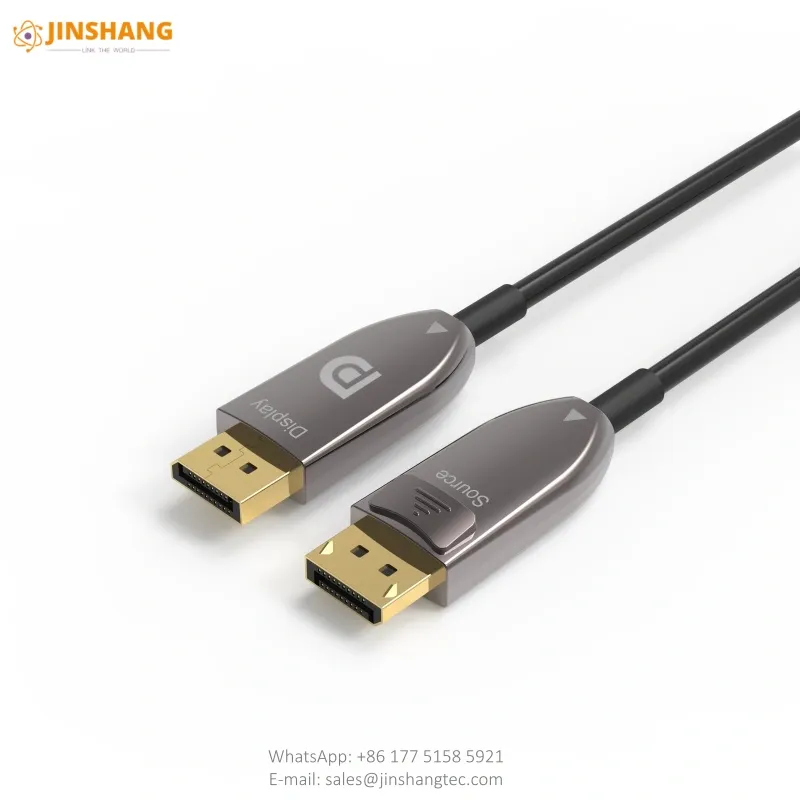

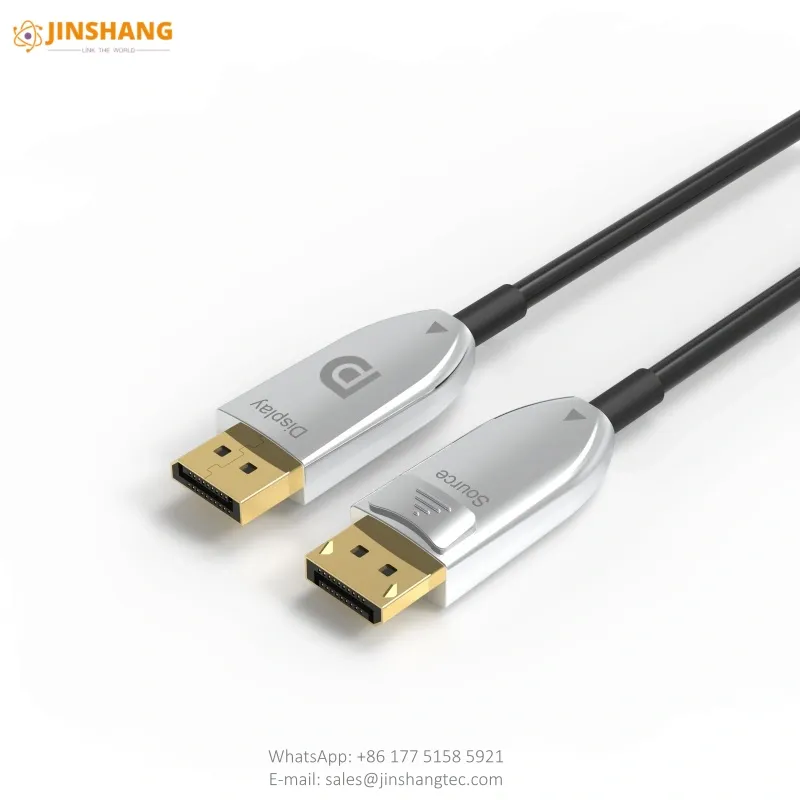

DisplayPort 2.1 Active Optical Cable AOC DP 32.4Gbps 8K 4K 165Hz Hybrid Fiber DP to DP 5-120M

G-Sync & FreeSync Compatible: Supports variable refresh rates for tear-free gaming.

Secure Latching: Connectors feature a locking button to prevent accidental disconnection (critical for secure installs).

No Signal Loss: Hybrid fiber/copper design delivers full DP 1.4 performance without repeaters.

DisplayPort 2.1 Active Optical Cable AOC DP 32.4Gbps 8K 4K 165Hz Hybrid Fiber DP to DP 5-120M

Armored DisplayPort 1.4 AOC DP Cable Active Optical Cable 8K 32.4Gbps

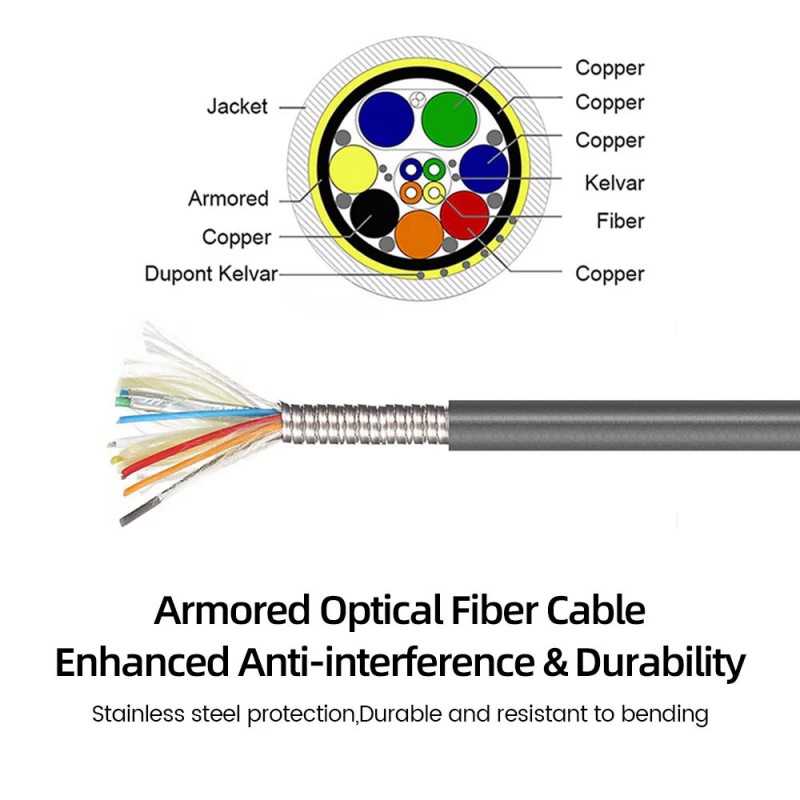

Structure Armored DisplayPort 1.4 AOC DP Cable Active Optical Cable 8K 32.4Gbps

DisplayPort active optical cables are specific cables for carrying both video and audio signals simultaneously from source to display units. These display units may include computer monitors, TVs, or screens. The DisplayPort active optical cable fully takes advantage of the high transmission bandwidth, low power consumption, and low EMI. The DisplayPort AOC is suitable for high-speed, high-quality, long-distance and sensitive applications or systems such as hospital equipment and wireless device.

Features

Compliant with DisplayPort2.1 standard, support 77.4Gbps bandwidth and 16K@60Hz, 8K@144Hz, 4K@240Hz, 2K@240Hz, 1080P@360Hz HDR G-SYNC FreeSYNC etc

Built-in photoelectric conversion engine

Hybrid OM3 optical fiber and copper cable is used as the transmission conductor

Kevlar fiber (bulletproof wire material) is used to enhance the characteristics of the optical cable, which is strong and resistant to pulling

Support long-distance transmission up to 100 meters

Support plug and play, no additional power supply required

The armor cable diameter is only 6.5mm, which is more convenient for installation and wiring

Excellent anti-radiation and anti-interference ability, perfectly solve EMI/RFI (electromagnetic interference/radio frequency interference) problems, and transmit signals without loss

Supports all major operating systems, including Windows, Mac OS, Linux

Cross-tested by laboratories and various brands and models of equipment, fully supports USB standard equipment

Widely used in industrial cameras, medical equipment systems, security monitoring, conference engineering, broadcasting systems, ships, touchscreens, game controllers and more

Specifications

Model No.: AOC-ADP21-A-A

Connector: DP 2.1, AM to AM Zinc Alloy

Resolution: 16K@60Hz, 8K@144Hz, 4K@240Hz, 2K@240Hz, 1080P@360Hz

Bandwidth: 77.4Gbps

Cable: Armored, Ф6.5mm, TPU

Supporting: CEC, HBR3, HDCP1.4 / 2.2

Length: Up to 100m (328 feet)
