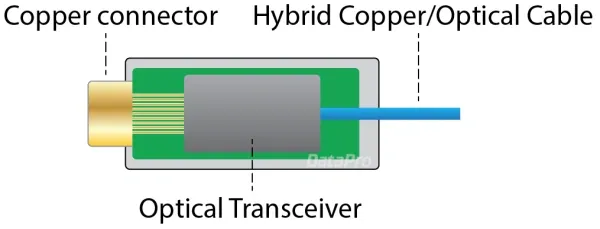

WHAT IS THIS PAGE? This is a technical reference page illustrating the internal structure of active optical cable (AOC) technology - including the optical conversion engine, hybrid fiber-copper construction, and connector module layout used in HDMI, USB-C, and DisplayPort AOC assemblies.
WHY UNDERSTAND AOC ARCHITECTURE? An AOC replaces copper high-speed pairs with optical fiber inside the cable jacket. Small optical transceiver modules at each end convert electrical signals to light and back. This is why AOC cables can run 30-100 meters while remaining thin and EMI-immune.
KEY SPECIFICATIONS

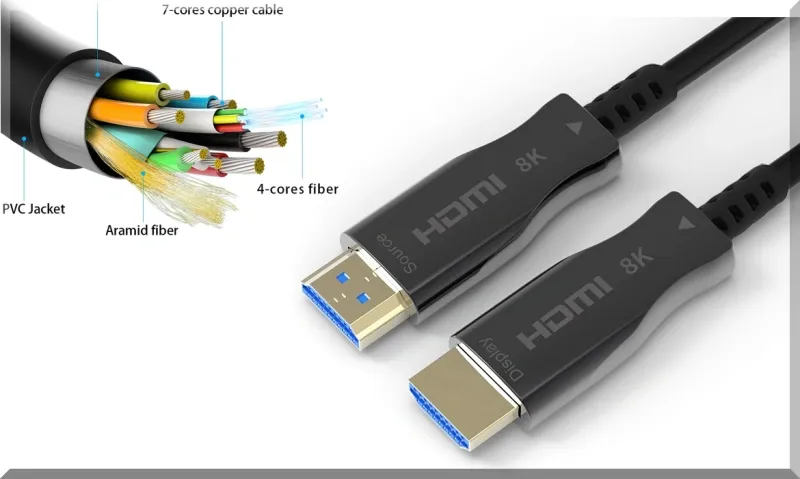

- Transmission: hybrid optical fiber with active modules at both ends
- EMI immunity: reduced electromagnetic interference vs copper
- Cable routing: lighter, thinner, more flexible over long distances
- Orientation: directional - source and display ends are labeled
- Custom lengths and connector options available on request
FREQUENTLY ASKED QUESTIONS
Q: How does an AOC differ from a copper cable? A: The high-speed data pairs are optical fiber; copper is used only for power and low-speed control.
Q: Can field technicians repair an AOC? A: The optical modules are potted at the factory. If a connector fails, the cable assembly is replaced as a unit.

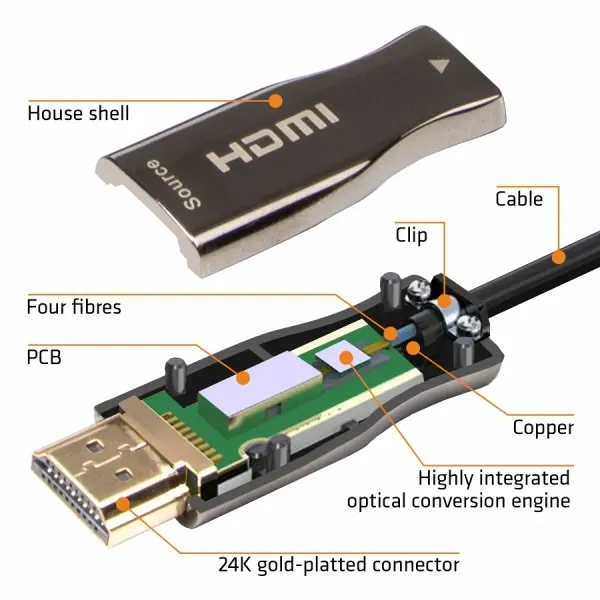

Q: What is the optical conversion engine? A: The small transceiver module in each HDMI/USB-C/DP connector that converts electrical signals to light.
