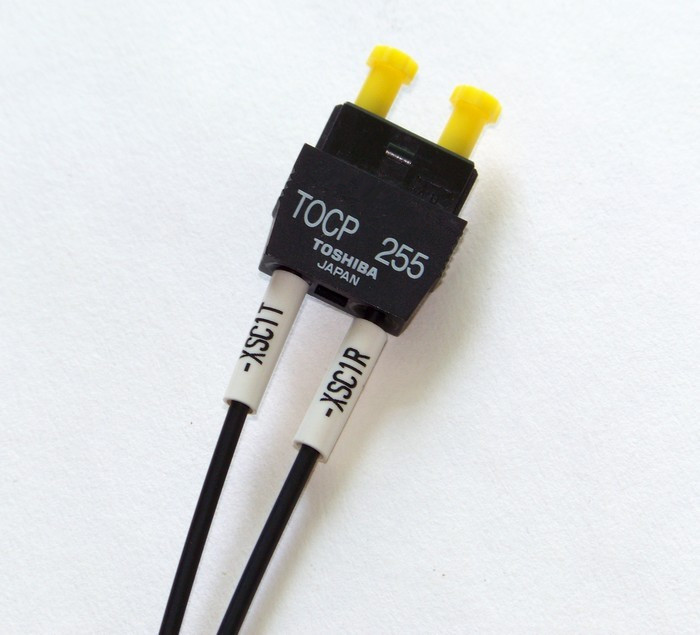

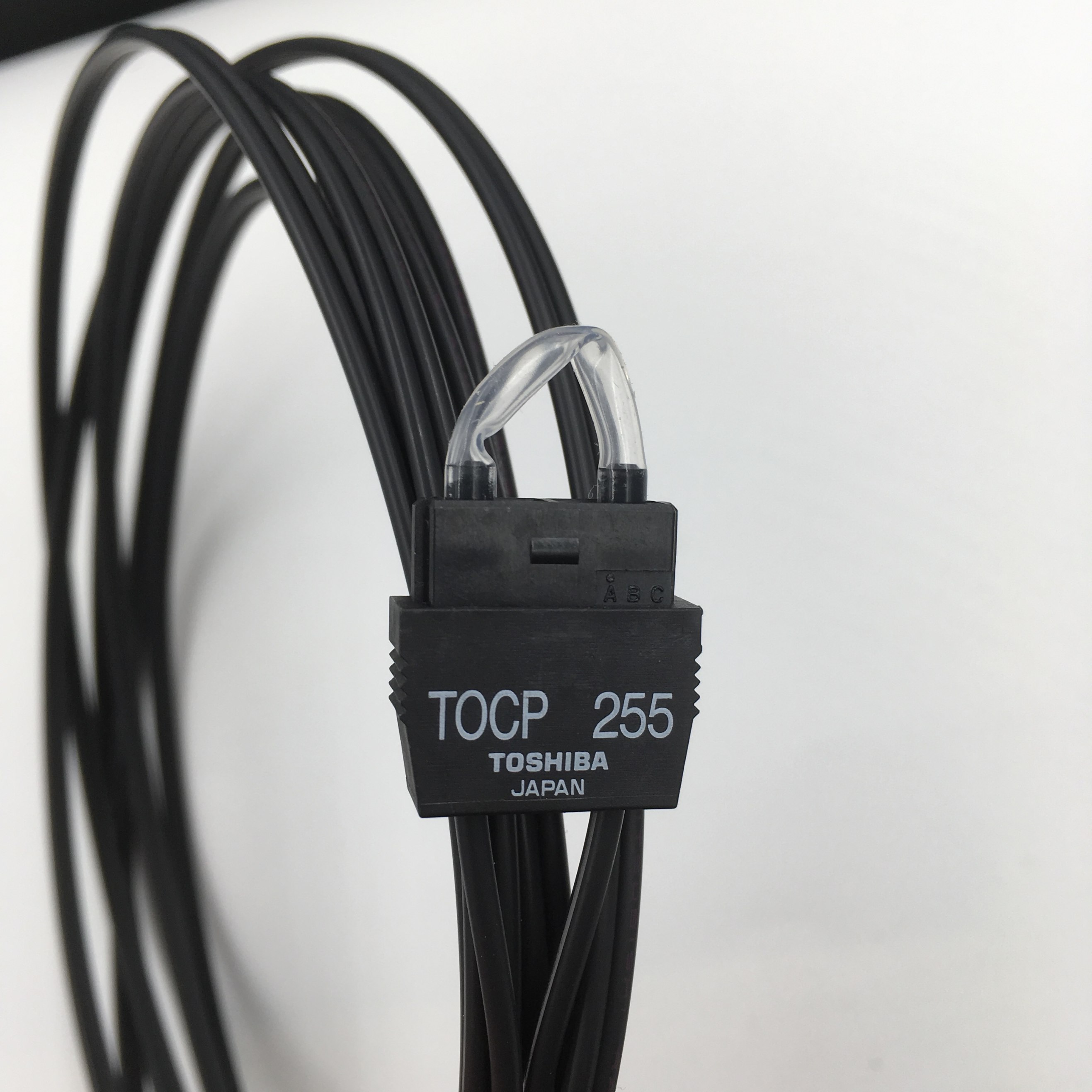

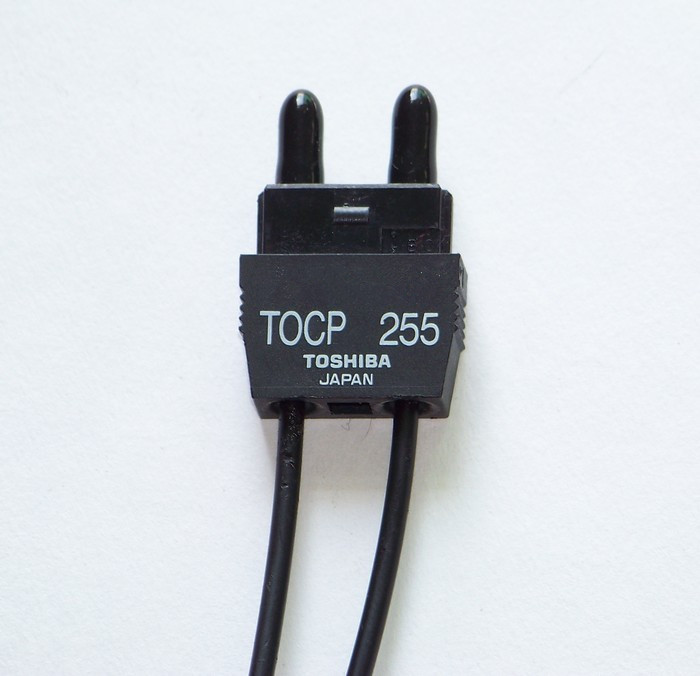

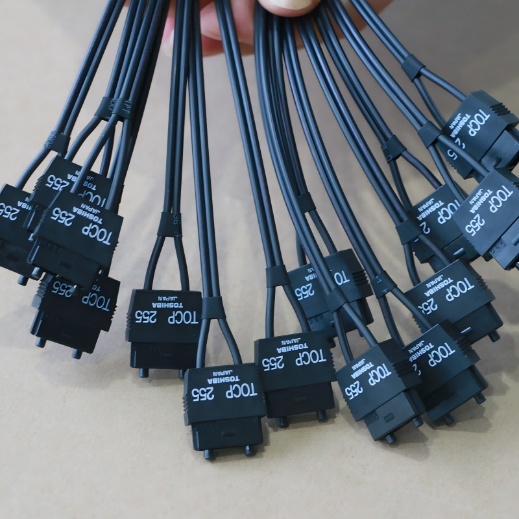

TOCP255 TOCP255K JIS F07 APF 980/1000um Fiber Optic Cable Duplex for CNC Controller Elevator, Server, Printer machine
Toshiba TOCP255, TOCP255K JIS F07 APF 980/1000um Fiber Optic Cable Assemblies, Duplex
TOCP255 Toshiba Industrial Optical Fiber cable for CNC Controller Elevator
TOSHIBA TOCP255 TOCP 255 Optical Fiber Cable Assembly JIS F07
Industrial Controlled Plastic Optical Fiber Cable Assembly JIS F07
TOCP255 Optical Fiber Cable TOCP 255 JIS F07 Duplex Type
TOCP255 TOSHIBA Fiber Optic Cable for CNC Controller, Elevator fiber optical cable, Server, Printer machine
Original toshiba connectors
Apply to JIS F07 type
Duplex type
APF (980/1000 um)
Toshiba TOCP255 Optics Fiber Cable can be used and replaced with Toshiba original equipment, with anti-pull, waterproof and pressure-proof design, low insertion loss, high-precision coupling and positioning imported Japanese optical fiber, which can ensure maximum data transmission and accurate polishing and grinding. The outer wire is made of PE, PVC and other materials, which are anti-wear, anti-corrosion, anti-stress, non-conductivity, and no electromagnetic interference radiation. It is widely used in data centers, industrial control, power systems, home networks and other assembly processes that exceed industry standards. The complex processing of multi-strand optical cables can transmit multiple data at the same time, reducing costs.
TOCP255 TOCP255K JIS F07 APF 980/1000um Fiber Optic Cable Duplex

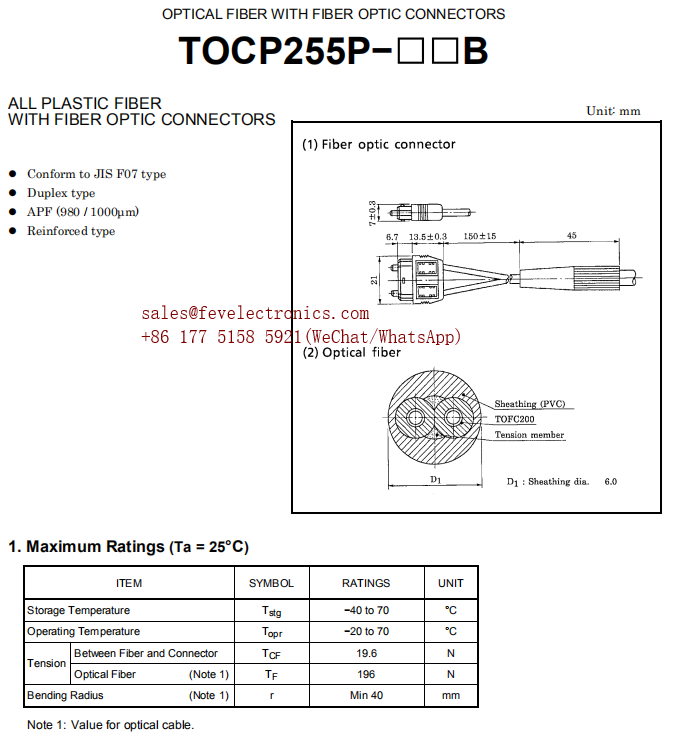

Performance specifications:
Interface type: TOCP 255
Connector material: Plastic sheath\metal ferrule
Core diameter: Φ1.0; (optional Φ0.25, Φ0.50, Φ0.75)
Core material: domestic fiber or imported Japanese fiber
Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm
Outer cover material: CPE, PE, PVC
Outer cover color: fog black, other colors can be customized
Attenuation: less than 180dB/km
Working temperature: -55℃-+85℃
Standard length: 1000mm, can be customized 0-100m any size
Meet the standard: European ROHS certification
toshiba tocp 255 optical fiber cable
APPLICATIONS OF TOCP255 TOSHIBA OPTICAL FIBER CABLE:
Industrial automation control system
Industrial robot system and servo system
Easy to install and connect without maintenance.
Digital multimedia systems
Medical sensor system
Compliance with Profibus, Interbus, ControlNet and SERCOS standards
Data transmission and industrial automation and bus systems
Industrial robots, intelligent system and servo system
Communication exchange systems
Digital multimedia systems
Medical sensing system
Power system, etc.
Telecommunication networks
Local area networks (LANs)
Data processing networks
Wide area networks (WANs)
Industrial, medical and military
KEY FEATURES
–Anti-electromagnetic interference and electromagnetic radiation
–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission
–High temperature and low temperature(-40 to 70)
–Easy to install, needless of maintenance
–Plastic optical fiber is not conductive, can share the power transmission pipeline
–Long-range power supply
–Accord with the Agilent universal
–RoHS Compliance
Light in weight; energy saving and safe;
High bandwidth; excellent flexibility; vibration resistance;
Anti-electromagnetic interference; stable and reliable signal transmission;
